ExpressPlex 2.0 Library Prep Kit, 96-well format with ANY INDEX SET

Featuring high-performance transposase TnX for reduced bias and improved coverage uniformity

Product Description

ExpressPlex 2.0 Early Access: The workflow simplicity of one-step library prep combined with the performance of TnX for high throughput sequencing of plasmids, amplicons and other synthetic constructs.

Improved performance: TnX transposase for reduced bias and improved coverage uniformity
Ease of use: Fragmentation, barcoding, and amplification in a single step
Rapid: 100-minute workflow (30 minutes or less hands-on) with pre-plated, reaction-ready reagents
Scalable: High-level sample multiplexing (up to 1,536 total barcode combinations) and auto normalization
ExpressPlex 2.0 Kits are available in 96- and 384-well format and with different Index-Sets

The patent-pending ExpressPlex 2.0 Library Prep Kit comes in a convenient 96-well PCR plate configuration for high-throughput multiplexed library preparation. This upgraded version of ExpressPlex uses seqWell’s high performance TnX™ transposase that was specially engineered for NGS library preparation. Amplicons (>350 bp) and plasmid DNA are suitable inputs for the kits. ExpressPlex libraries are compatible with the Illumina MiSeq™, NextSeq™, iSeq™, and NovaSeq™ sequencing platforms.

Each ExpressPlex 2.0 kit contains sufficient reagents to prepare Illumina-compatible libraries from 384 or 96 individual DNA samples. Libraries can be prepared from 48 – 384 samples per batch. There are four different kits available for preparing libraries from 384 samples, providing a total of 1,536 total barcode combinations that can be loaded on a single sequencing run. Set 1000 is recommended if running fewer than four 96-well plates (384 samples) per run on the NextSeq 1000/2000 sequencing platforms. Please refer to Illumina’s guidelines for optimal color balancing for different sequencing chemistries.

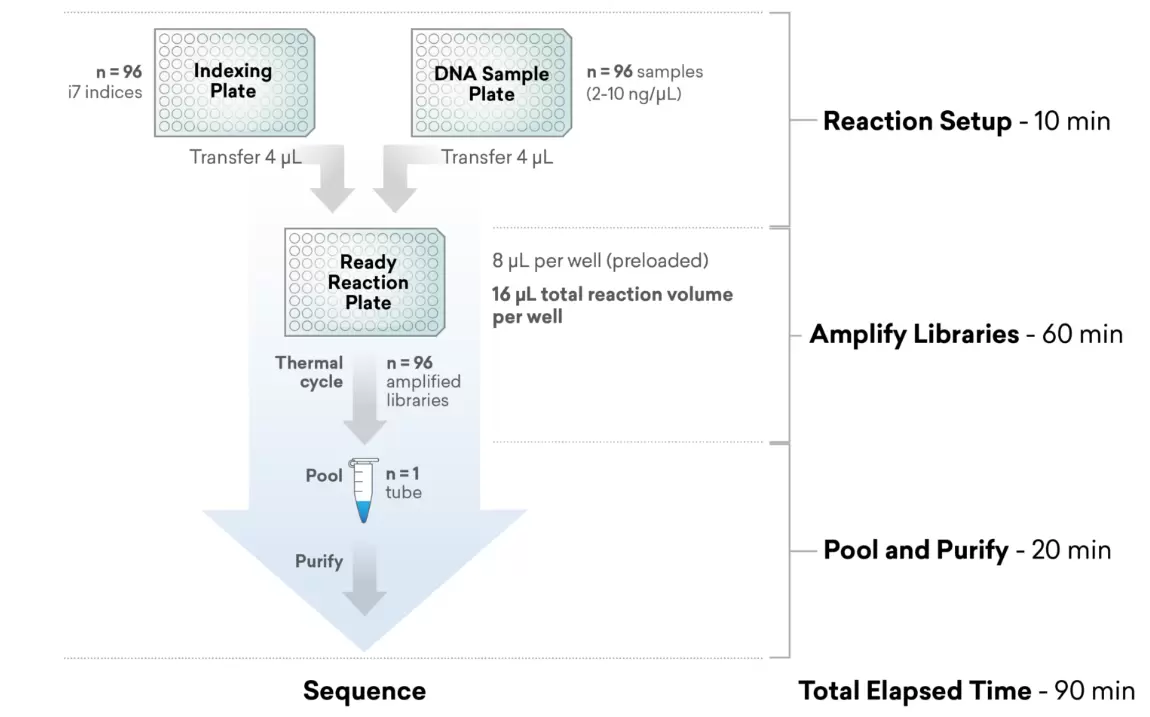

ExpressPlex Library Preparation Workflow

Expressplex2 0 Workflow 96 Snip

Case Studies

Expressplex Recorded Webinar Pic2

Moderna presentation
Antibody Sequencing: New Operating Model

In this presentation, Nasthas Lacerda Almeida from Moderna, highlights how her organization has leveraged ExpressPlex™ 2.0 for a clonal antibody sequencing approach, optimized for speed and scalability using de novo assembly of NGS short reads.
Watch the Webinar

Octant Bio
"Enabling High-Throughput Biology With New Technolgies for Synthetic Construct Sequencing"

The game-changing capabilities of ExpressPlex were highlighted in this case study in collaboration with the synthetic biology team from Octant Bio, a drug discovery company located in Emeryville, CA, demonstrating the application of ExpressPlex to the high-throughput plasmid sequencing platform that powers Octant’s therapeutic discovery platform.

Expressplex Testimonial Bild

Kit Content

Indexing Reaction Plate(s)
Ready Reaction Mix Plate(s)
MAGwise Paramagnetic Beads*

* Larger volumes (15 ml) of MAGwise paramagnetic beads are also available to purchase separately.

Supporting Data

TnX Transposase: Quality Libraries for Quality Sequencing

ExpressPlex 2.0 uses tagmentation powered by TnX, the next generation transposase, to simultaneously fragment & index sample DNA. Average fragment size ranges from 400-1200 bp.

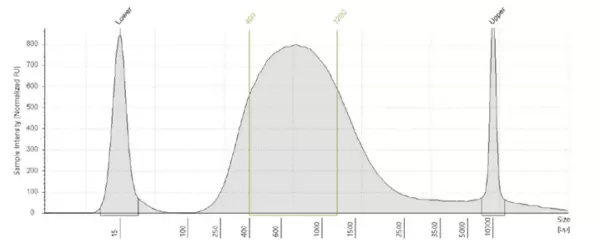

Fig.2. Typical fragment profile following analysis on an Agilent TapeStation System. Data shown are for a 96-plex sample.

TnX: Transposase Engineered for Reduced Insertion Bias

ExpressPlex 2.0 is the only library prep kit powered by TnX! TnX was engineered to reduce insertional bias to improve uniformity of coverage. When directly compared to a Tn5-based competitor library prep kit for sequencing of 2 different plasmids, ExpressPlex 2.0 produced significantly lower CVs and range of coverage (max/min).

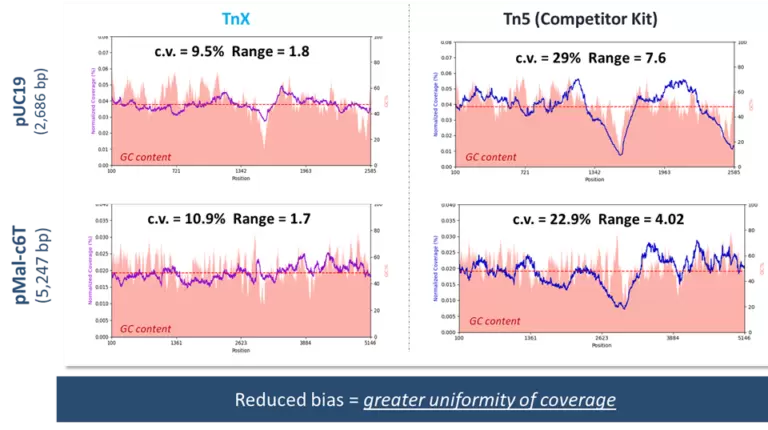

Tnx Reduced Bias

Fig.3. Library preparation for pUC19 and pMal-c67 was conducted using ExpressPlex 2.0 kit and a Tn5-based competitor kit using standard manufacturers’ protocols. Libraries were sequenced using an Illumina MiSeq.
