LUNA-FX7 Automated Cell Counter, Basic Package

Most powerful member of the award-winning LUNA™ Cell Counter family

Product Description

Cell culture experiments made easier and faster. The LUNA-FX7 is the most advanced member of the LUNA cell counter family. It offers unmatched cell counting accuracy, a maximum counting volume of 5.1 µL (10 times that of conventional cell counters), all new optics, dual fluorescence and brightfield illumination, a fast and precise autofocus, and multichannel pipette-ready 8-channel slides to count up to eight samples simultaneously.

• All new optics and upgraded software algorithm with high-speed and precision autofocus
• Options for a diverse range of slides (8-, 3-, 2-, 1-chamber formats)
• Data transfer via Wi-Fi, USB device, or Ethernet
• 256 GB built-in storage capacity
• New validation slides for fast, convenient QC with highest precision available
• The LUNA-FX7 is also offered with an Advanced Package (L70002-LG)

For all LUNA cell counters extended warranty plans are available. Please contact us for further details.

LUNA-FX7 Video:

Bioprocess: Why standardized cell counting is critical to assess viability and concentration. Learn more in this webinar.

Convenient and High-Speed Workflow

As easy as 1-2-3. With a highly intuitive user interface, the LUNA-FX7 eliminates unnecessary operations. In three easy steps, the precise autofocus feature produces accurate and reliable results in less time. Load – Count – Read Results. It’s that easy. The LUNA-FX7 truly streamlines workflow creating an efficiently run lab with exceptionally accurate data.

Simple Optimization & Data Management

Manage Your Data with Precision. With brightfield and dual fluorescent detection options, multiple counting modes and customizable protocols, the LUNA-FX7 gives you control over your data. You have the flexibility to optimize for your cell and sample type with the assurance of built-in quality control features. The re-analysis feature lets you easily review and analyze previous counts using different protocol settings providing more options for data parsing. Counting results can be transferred and saved by USB, Wi-Fi or Ethernet connection. In addition, results may be exported as a CSV summary or a comprehensive PDF report with raw and tagged images.

Reliable Results across a Wide Concentration Range

Meeting demand. Researchers across the globe have spoken and demanded an extremely accurate cell counter that has a fast and reliable autofocusing ability that can produce high quality images. The state-of-the-art optical system, superior dynamic range, and advanced delcustering algorithm allow the LUNA-FX7 to meet this demand.

Diverse Cell Counting Applications. The LUNA-FX7's broad cell detection range, 1 x 104 cells/mL to 5 x 107 cells/mL eliminates the need to dilute or concentrate samples, making the LUNA-FX7 suitable for diverse cell counting applications including single-cell sequencing and CAR-T cell therapy.

Multiple Slide Options, Simple Handling

Versatile Slide Options. The LUNA-FX7 can accommodate multiple slide options. The multi-channel pipette compatible 8-channel slides maximize throughput; the 3-channel slides facilitate easier data handling and organization; and the single channel slides, with a nearly 5 μL counting volume, promote increased accuracy and precision. With 'One and Done' slide insertion, a slide is inserted once and the LUNA-FX7 will count all the chambers without the need to remove and reinsert the slide.

Quality Control - Trust Your Data

The LUNA-FX7™ validation slides and QC software allow you to be confident and trust in your data. The brightfield and fluorescent validation slides offer exact cell concentration and viability while the QC features provide the ability to store, monitor, and analyze quality control data.

The Smarter Way to Count Cells

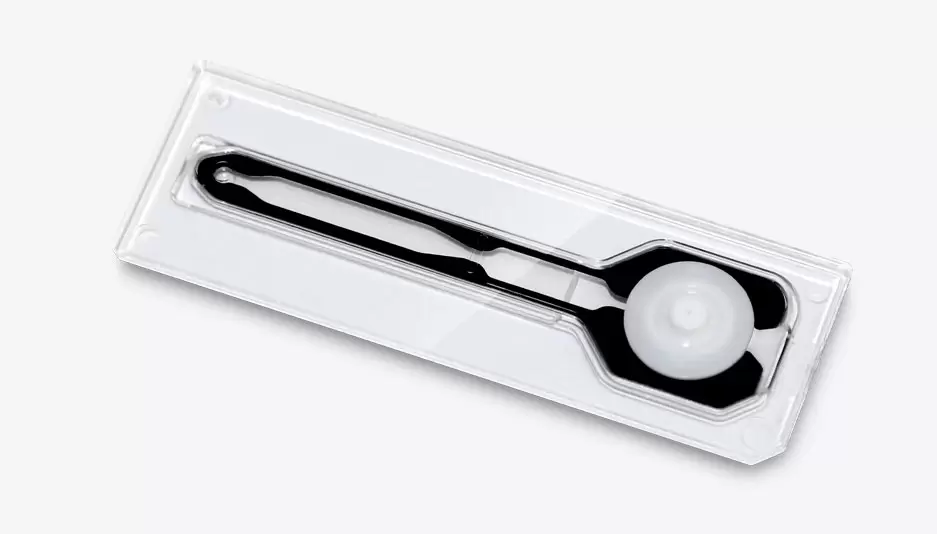

The SpectraSlide® is a disposable cell counting device designed for use with the LUNA-FX7™ automated cell counters, integrating cell sampling and staining into one convenient tool. Simply insert the slide into your sample, press the Cell Sampling button, then count your sample. No mixing, no mess, and no pipetting.

Package Content

• LUNA-FX7™ Automated Cell Counter (250 GB onboard storage)
• Standard LUNA Cell counting software
• F73101-LG LUNA-FX™ Calibration Beads Kit
• T13001-LG Trypan Blue Stain, 0.4% (2 x 1 ml)
• F23001-LG Acridine Orange/Propidium Iodide Stain (2 x 0.5 ml)
• Cell Counting Slide Samples (2 each of 1/3/8 and PhotonSlide™)
• USB Drive 16 GB
• Wifi dongle
